TFT-LCD large size Reticle Box

TFT-LCD large size Reticle Box

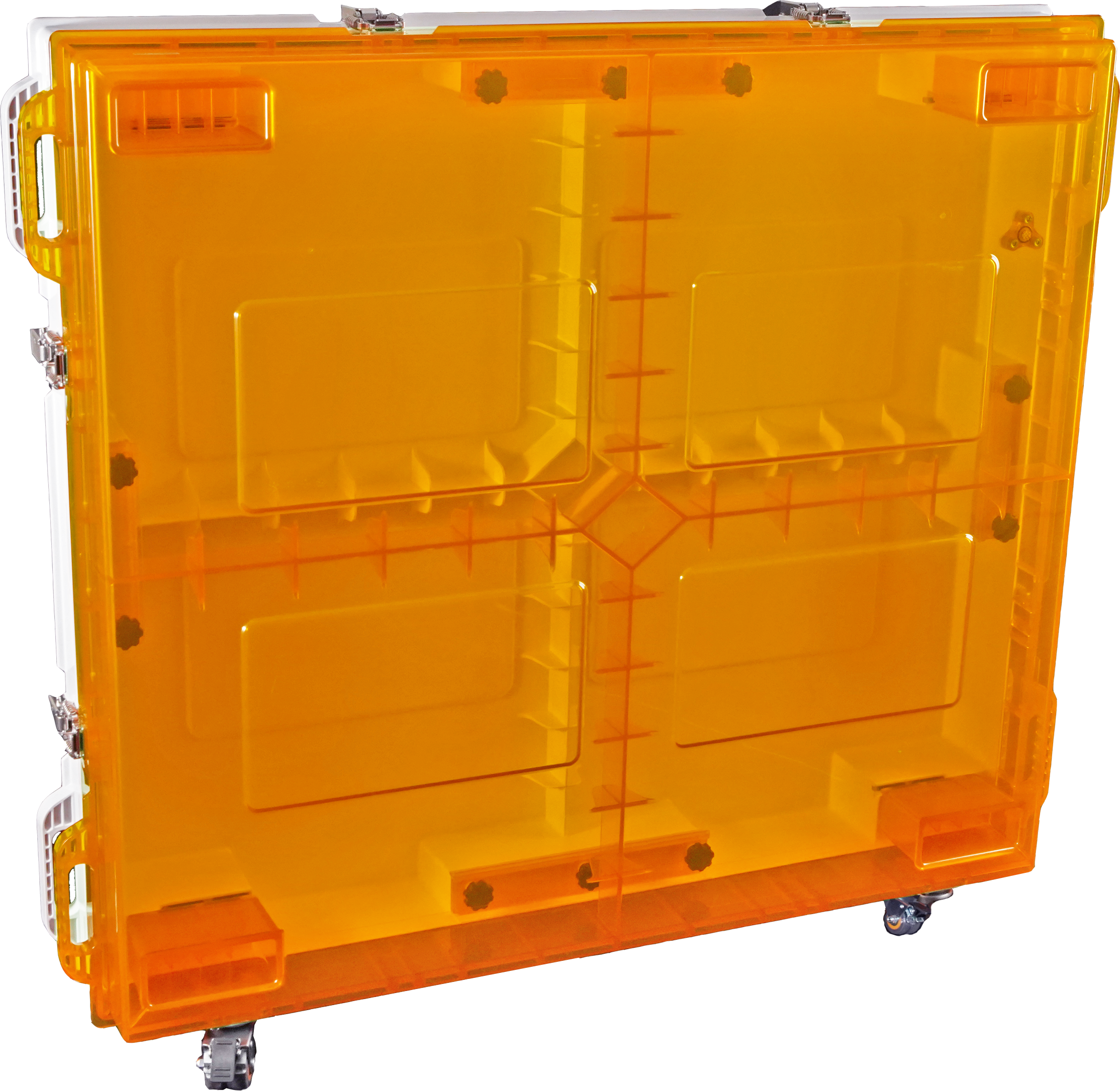

TFT-LCD large size Reticle box (8092)

Gudeng provides shipping boxes for three different sizes of TFT-LCD reticles of 800*920mm, 800*945mm, and 800*960mm. The outside dimensions are the same, and the inside dimensions vary depending on the reticle size. The upper and lower covers are made of one-piece injection molding, and are designed with air-tight rubber seals, which have better structural strength and closeness, and avoid particle contamination during transportation. Use antistatic material to avoid ESD damage to the reticle.
  • Size
    800*920mm、800*945mm、800*960mm
  • Material
    ABS(ESD)
Feature
  • Good air tightness to avoid particle contamination during transportation
  • Transparent and antistatic material
  • Optional: Pressure adjustment design to avoid damage to the reticle caused by high-altitude transportation pressure difference
