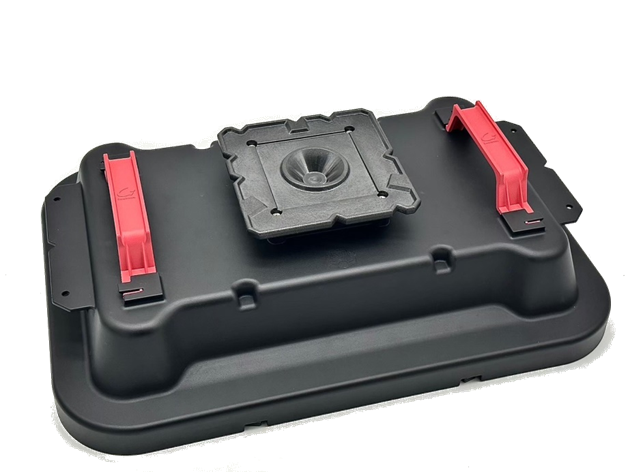

Provides high-performance protection for 6 x 12 x 0.25-inch EUV reticle during transfer and storage between process stations. The inner EIP is designed for operation under vacuum conditions. Equipped with a purge function to control the temperature and humidity of the micro-environment inside the reticle carrier box.
Size
6 x 12 x 0.25 (in.)
Material
PEEK(ESD)、Metal
Usage
Support purge function
Application
Suitable for EUV process (ASML Certification)
